Extreme Duty Open Front Brush Cutter – by Blue Diamond
Price range: $9,057.00 through $12,570.00
The Blue Diamond Extreme Duty Open Front Brush Cutter is a commercial-grade attachment for skid steers and compact loaders. It cuts grass and brush effortlessly—with capacity for trees up to 6–8″ in diameter. Featuring dual-direction cutting, a heavy-duty push bar, rear chain curtain, and compatibility with both standard‑flow (14–26 GPM) and high‑flow (23–45 GPM) systems, this tough cutter delivers unmatched performance and durability.
Product Description
🔧 Built for Extreme Applications
This open-front brush cutter is engineered for aggressive land clearing, right-of-way maintenance, and vegetation control in forestry, agriculture, and commercial settings.
- Cuts grass, brush, and saplings up to 6–8″ diameter
- Open front design allows direct blade contact for fast, clean cutting
- Designed for compact track loaders and skid steers
⚙️ Hydraulic Compatibility
Choose the right configuration based on your machine’s hydraulic flow:
- Standard Flow: 14–26 GPM (requires 50+ HP)
- High Flow: 23–45 GPM (optimized for performance)
- Performs like a high-flow unit even with as little as 16 GPM
🔩 Heavy-Duty Construction
This cutter is built to last, even under intense job site conditions:
- 3.5″ forged one-piece spindle (greasable, heavy-duty bearings)

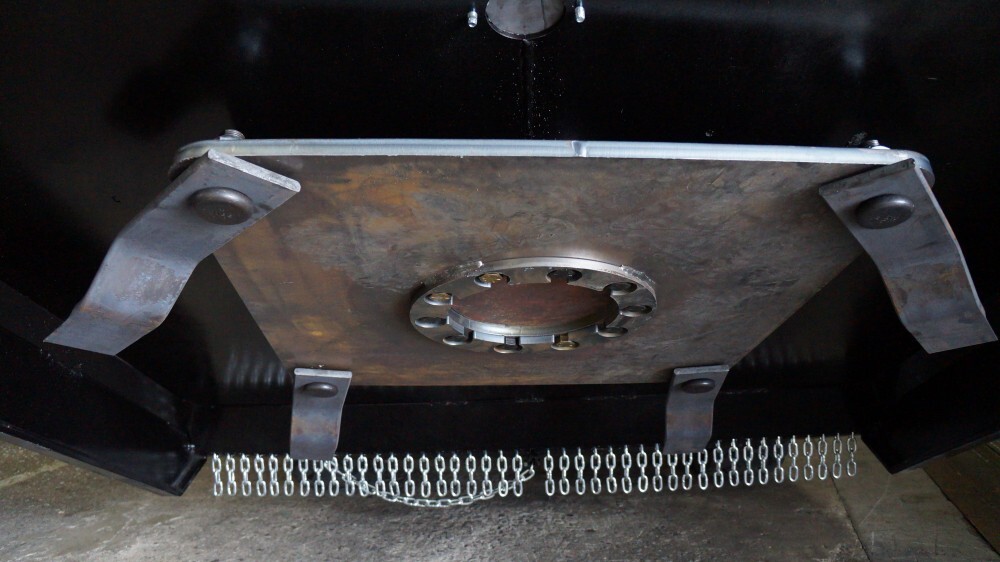

- ¾” thick blade carrier with massive flywheel mass
- Dual-direction cutting with replaceable, updraft-style blades

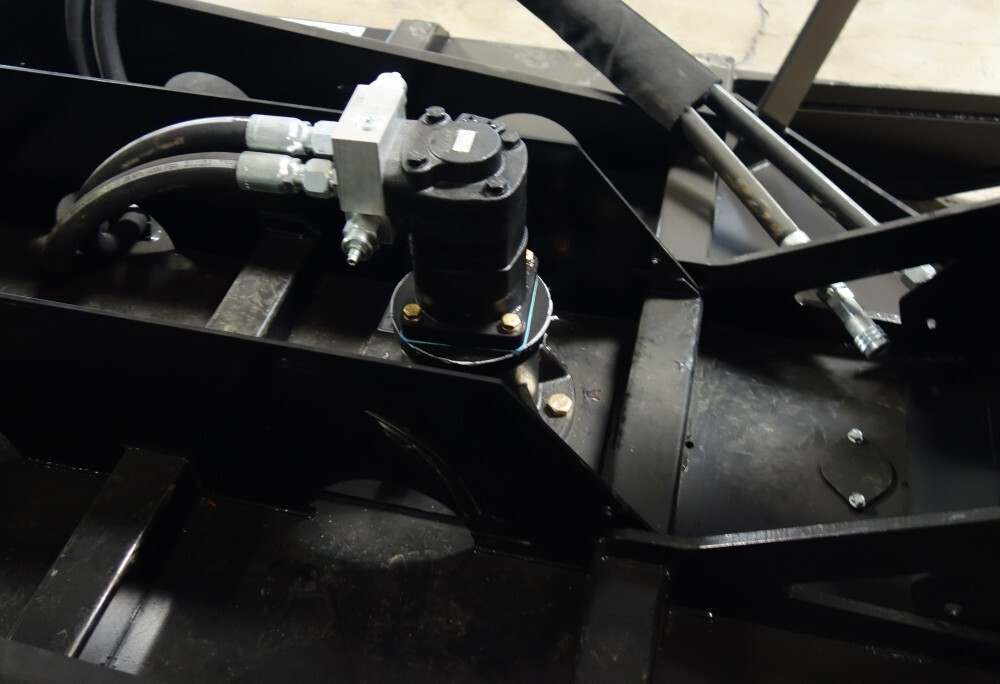

- Dual external cross-port relief valves for motor protection
🛡️ Safety & Control Features
Designed to enhance operator safety and maintain control while clearing tough terrain:
- Heavy push bar to deflect debris and guide material

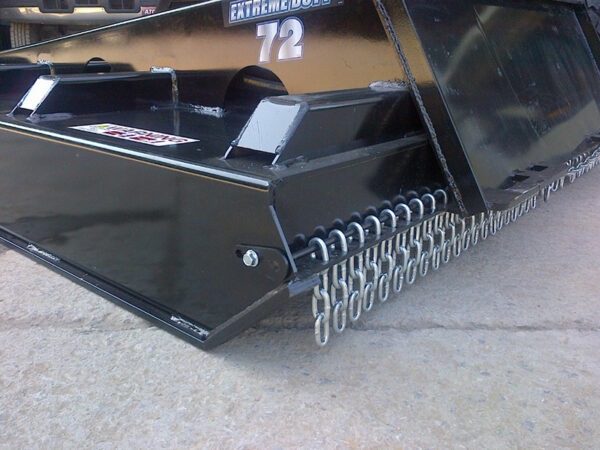

- Rear chain curtain for debris control and smoother discharge
- Open deck front allows ground-level cutting of stumps and dense growth
📏 Size Options
Available in two widths to suit your clearing needs:
- 60″ cutting width
- 72″ cutting width
🏆 Warranty & Value
- Lifetime warranty on the spindle against breakage
- 1-year overall warranty
- Proudly built in the USA with high-performance in mind
Model Specs
📊 Blue Diamond Extreme Duty Open Front Brush Cutter – Model Comparison
| Model # | Cutting Width | Flow Type | GPM Range | Weight |
|---|---|---|---|---|
| 103016 | 60″ | Low Flow | 14–22 GPM | 1,232 lbs |
| 103025 | 72″ | Low Flow | 16–26 GPM | 1,560 lbs |
| 103017 | 60″ | High Flow | 23–40 GPM | 1,296 lbs |
| 103030 | 72″ | High Flow | 27–35 GPM | 1,607 lbs |
| 103032 | 72″ | High Flow | 36–45 GPM | 1,633 lbs |
