Product Description
Crystal Clear Protection for Bobcat M Series Skid Steers 🛠️

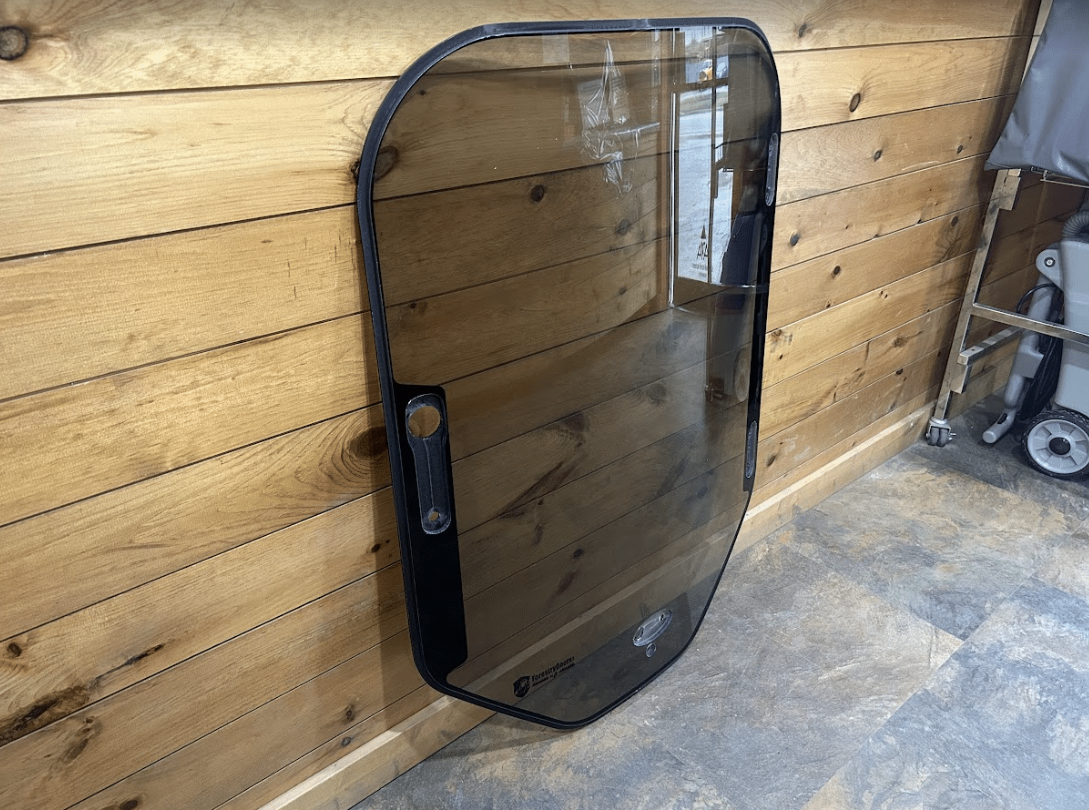

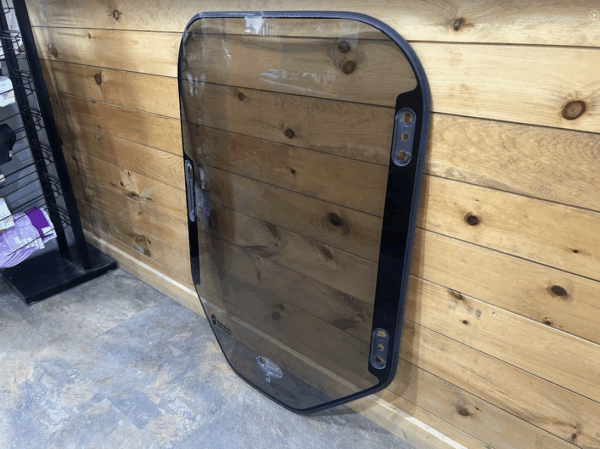

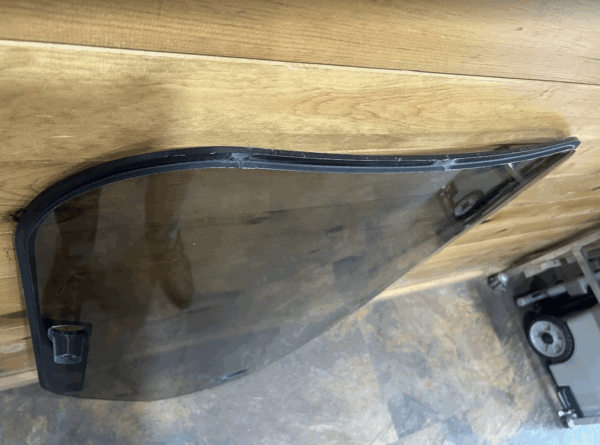

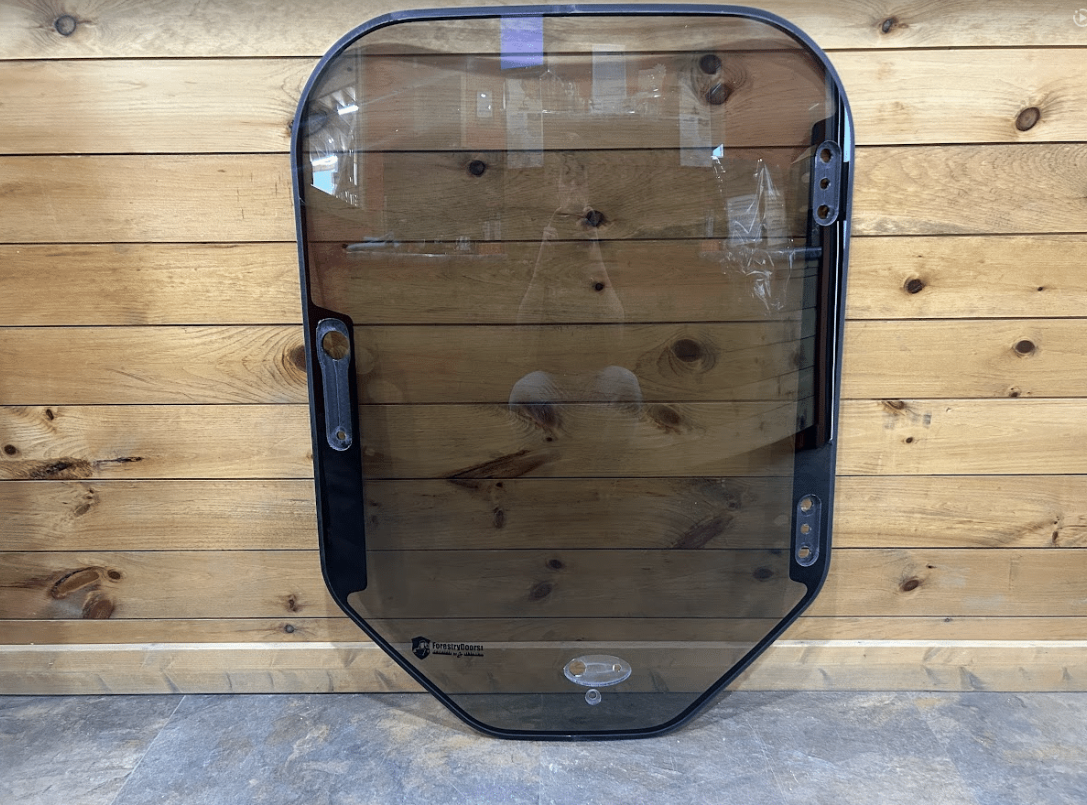

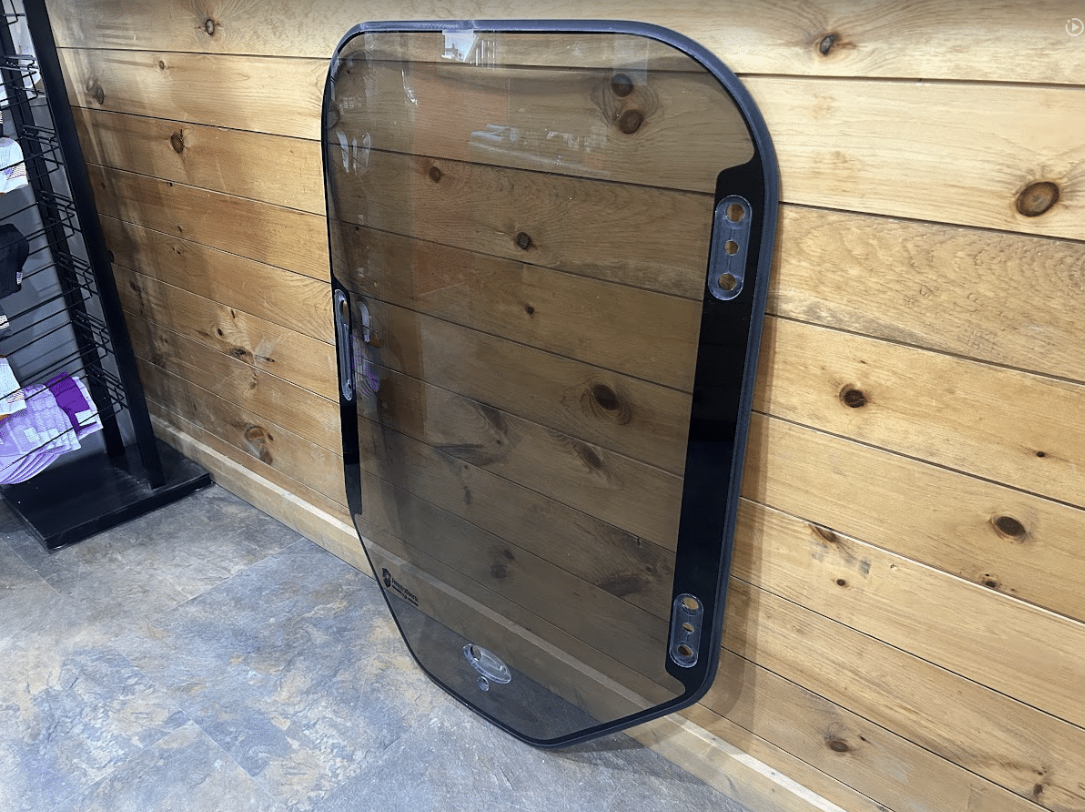

Upgrade your Bobcat’s front cab with a serious shield that works as hard as you do. This clear polycarbonate windshield is a direct replacement for OEM glass (Part #7120401) and is built to take a beating—without compromising clarity or comfort.
🔧 Fast, Bolt-On Installation – No Modifications Needed

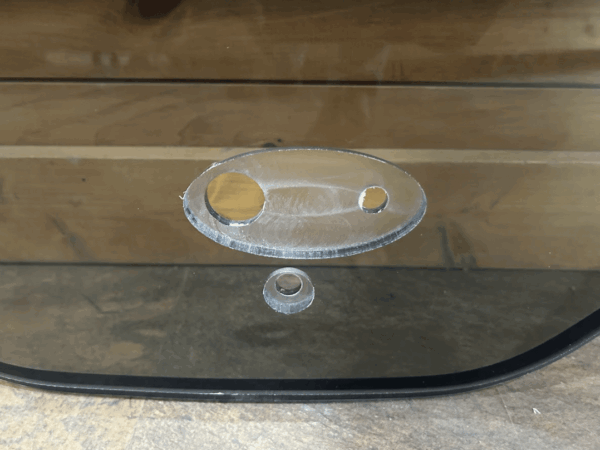

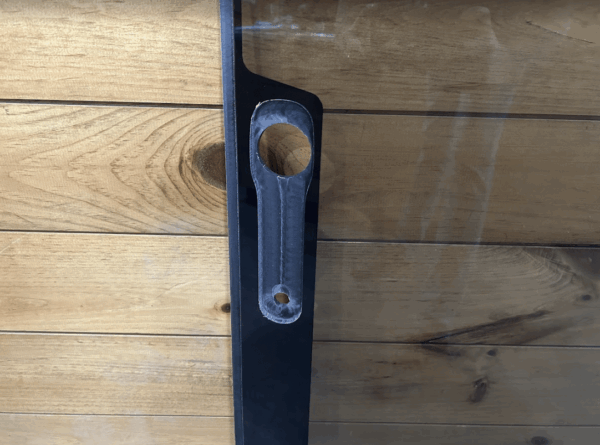

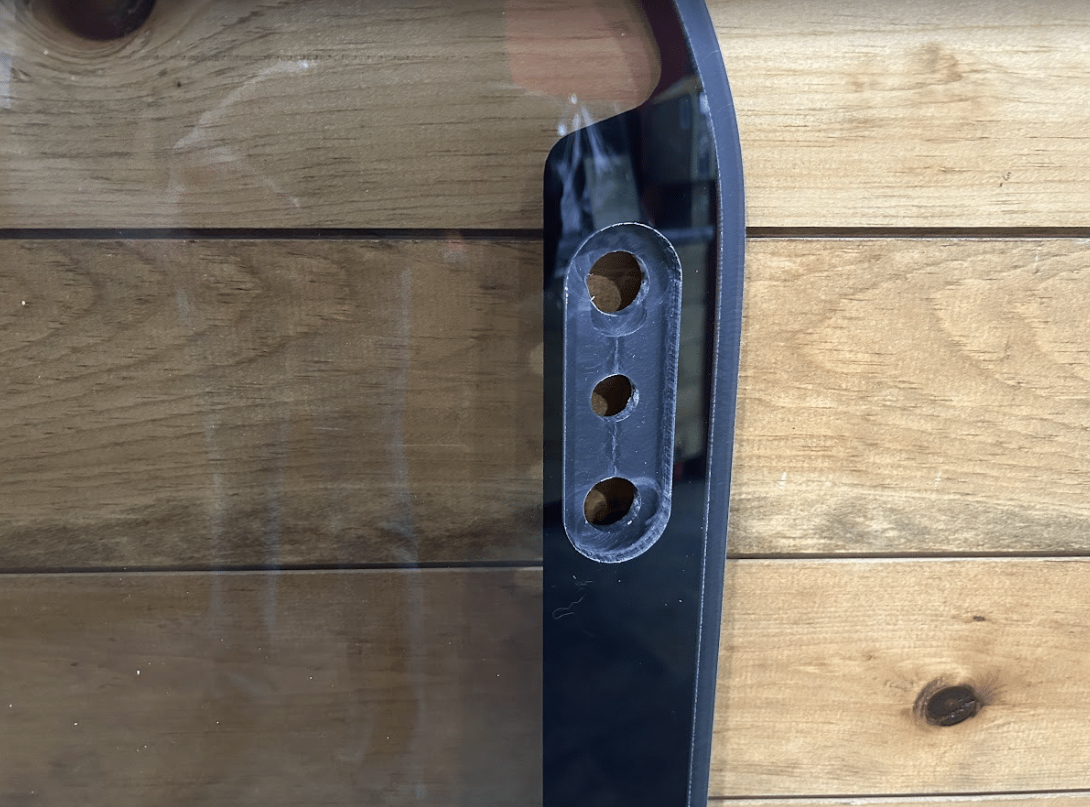

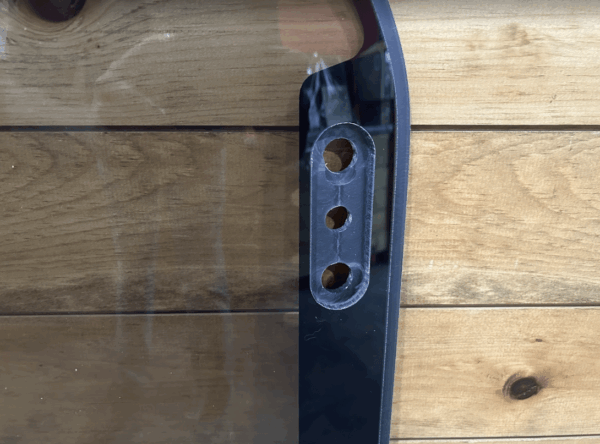

This windshield matches OEM specs with pre-drilled holes and milled edges for a quick and easy install. Just reuse your original hardware, seal it up, and get back to work.
🧼 Hard-Coated for Durability
Each windshield is coated on both sides with an abrasion-resistant finish to prevent scratches, scuffs, and chemical damage—keeping your view clear in tough conditions.
🛡️ Unmatched Strength Without the Weight
At 250x stronger than glass and half the weight, this polycarbonate shield offers elite impact resistance and reduces cab noise. It’s the ideal solution for demolition, land clearing, or job sites where debris is flying.
💡 Clarity and Comfort Year-Round
The clear version maximizes light transmission and is perfect for indoor work, night operations, or any job where visibility is critical. It also helps maintain interior temps by reducing summer heat gain and winter heat loss.
🔩 Mounting Info

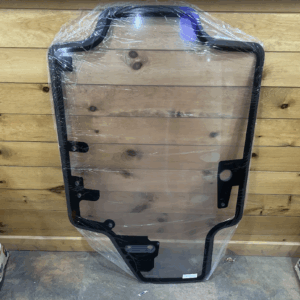

This shield is a direct fit for your Bobcat M Series using existing hardware. No additional mounting kit is included. Protective film must be removed before use—some images may show the film still applied.
✅ Fits the following Bobcat M Series models:
All-Wheel Steer: A770
Skid Steer Loaders: S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850
Track Loaders: T450, T550, T590, T595, T630, T650, T740, T750, T770, T870
Note: This is not a replacement for the 3/4″ laminated forestry door. It’s not manufactured by Bobcat.
—
Stronger. Safer. Clearer. Upgrade your cab and keep your vision sharp—because your machine deserves more than glass. 💥
The Bobcat M Series Skid Steer Loader Windshield from Forestry Doors is made of strong polycarbonate to ensure it offers superior toughness, safety, and performance. The material is made to be 250 times stronger than glass, is totally impact-resistant, and has been coated for abrasion resistance. For increased operator comfort, our replacement windshield is much better at regulating the temperature in the cabin than standard OEM factory glass, meaning less heat is lost in the winter and less heat is gained in the summer. It also reduces noise and increases visibility and light transmission. We guarantee easy application on a variety of all-wheel loaders, skid steer loaders, and track loaders in Bobcat’s M series.
Compatibility
This windshield is a direct OEM glass replacement for Bobcat M Series skid steers and track loaders. It fits machines equipped with the standard cab door using OEM part #7120401.
✅ Fits the following models:
All-Wheel Steer:
• A770
Skid Steer Loaders:
• S450, S510, S530, S550, S570, S590, S595
• S630, S650, S740, S750, S770, S850
Compact Track Loaders:
• T450, T550, T590, T595
• T630, T650, T740, T750, T770, T870
Important Notes:
Warranty
LIMITED WARRANTY
If the windshield/window (i) breaks, (ii) incurs coating failure, (iii) exhibits excessive increased haze, or (iv) exhibits excessive yellowing or loss of light transmission—each within ten (10) years from the date of sale due to manufacturing defect and subject to the definitions and conditions set forth herein—the purchaser will receive a free replacement windshield/window, provided the failed windshield/window, original sales receipt, and this warranty are returned to the original dealer. If a replacement windshield/window cannot be provided within fourteen (14) days, the manufacturer may opt to refund the original windshield/window purchase price.
CONDITIONS
This warranty applies only when the windshield/window is used in flat vertical architectural glazing, excluding transportation, outdoor recreational, and off-road vehicle applications. The product must be cleaned according to recommended guidelines (see reverse side for cleaning instructions). This warranty does not cover (re)installation expenses or any other direct or indirect loss(es) resulting from windshield/window failure.
Breakage: The warranty against breakage applies only to a windshield/window fabricated, installed, and cleaned according to recommendations. The windshield/window is substantially stronger than acrylic and resists impact, abuse, and vandalism. However, no material can be described as unbreakable, as all use cases cannot be accounted for.
Coating Failure: The warranty covers coating failure when the abrasion-resistant surface treatment visibly flakes or loses adhesion to the substrate sheet, detectable without instruments.
Abrasion Resistance: The windshield/window will not exhibit an increase in haze of more than 15%.
Test Criteria: The sample as manufactured shall be abraded per ANSI Z26.1 (Taber Abrader, Test No. 17) for 100 cycles with a 500g load.
Yellowing and Light Transmission: This applies only to clear, transparent windshield/windows.
-
The Yellowness Index (YI) shall be less than 5.0 within five years and less than 10 within ten years from sale date, per ASTM D1925 (1977), as measured with a Gardner Colorimeter.
-
Light transmission loss shall not exceed 5% within five years and 7% within ten years, per ASTM D1003 testing protocols.
-
This warranty does not cover yellowing or light transmission losses due to dirt, atmospheric deposits, abrasion, or physical changes unrelated to material degradation. Regular cleaning reduces, but does not prevent, this effect.
This warranty does not apply to hazing caused by physical abuse or improper cleaning methods.
LIMITATION OF LIABILITY
The warranties stated herein are the only warranties provided and are in lieu of all other warranties—written or oral, statutory, expressed or implied—including any warranty of merchantability or fitness for a particular purpose.
The manufacturer shall not be liable for special, consequential, or incidental damages arising from use or application of the windshield/window, whether the claim is based on warranty, contract, tort, or other legal theory. Liability shall not exceed the original purchase price of the product.
The remedies described are the purchaser’s sole and exclusive remedies.
Installation
*Please note that this door is exactly like replacing glass. All you have to do is remove your hardware and re-install onto the polycarbonate. All holes for your hardware and seal are milled to fit just like your glass.
